Museum of Modern Art
Light Calculation Project
Revit / Elum Tools / Enscape / Photoshop
LIGHTING STANDARDS AND AREA DESCRIPTIONS:
Entry & Throughway:
Area Description - To properly light the entry and initial walk path for high foot traffic, a bright and inviting space
Lighting Standard - The minimum for General circulation = 100 lux
Ticketing Area:
Area Description - To properly light the horizontal surface of the ticket counter and allow for vertical displays on the wall behind it
Lighting Standard - The minimum for Task area = 150 lux
Gift Shop:
Area Description - To properly light the display tables and shelving (horizontal and vertical surfaces) with merchandise as well as lighting the Cash/Wrap area
Lighting Standard - The minimum for Art/Merchandise Examination area= 750 lux
Waiting Area:
Area Description - Provide a lighting solution for a space that allows comfortable rest while waiting or socializing for guests
Lighting Standard - The minimum for Waiting area= 40 lux

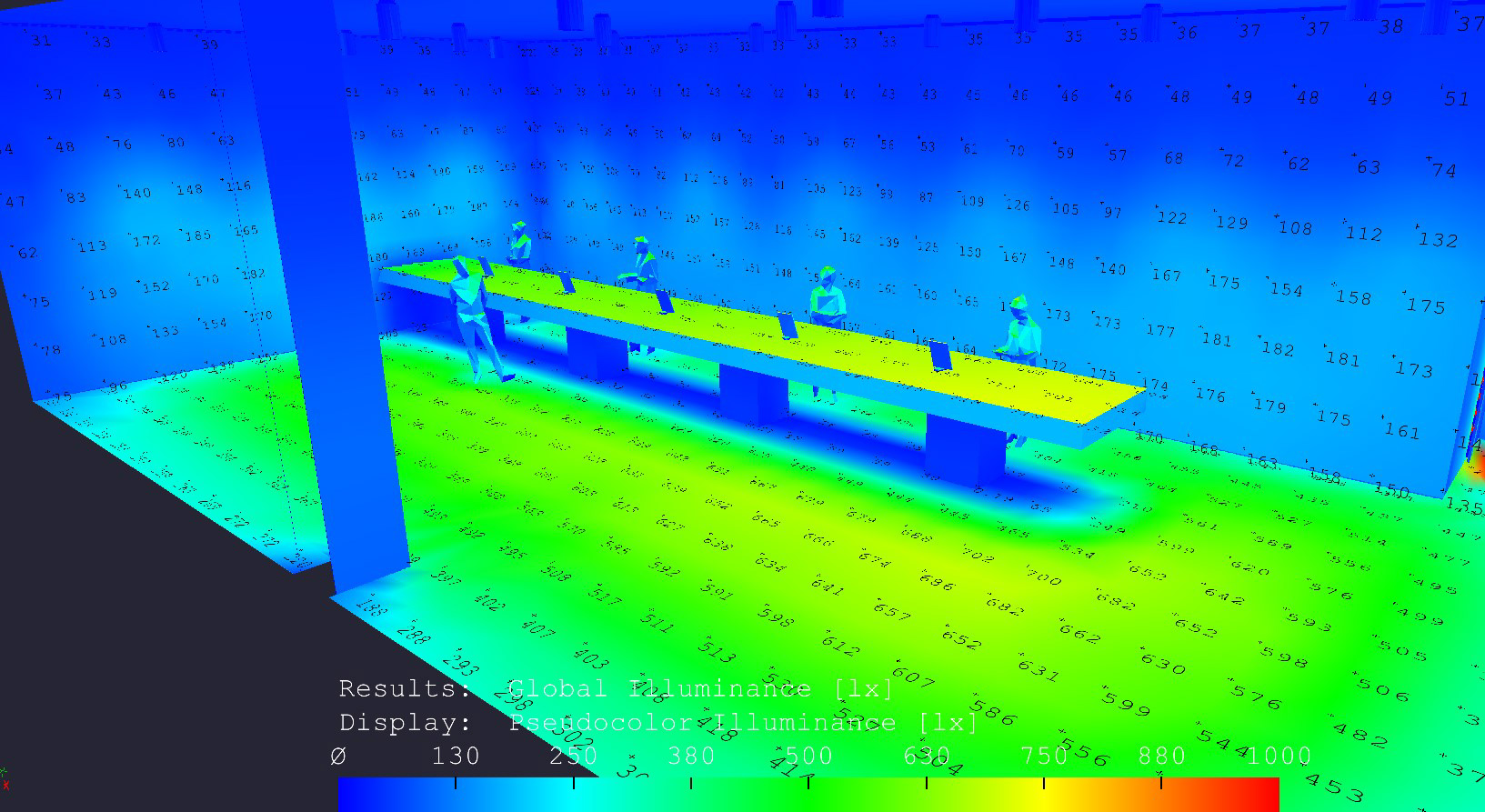

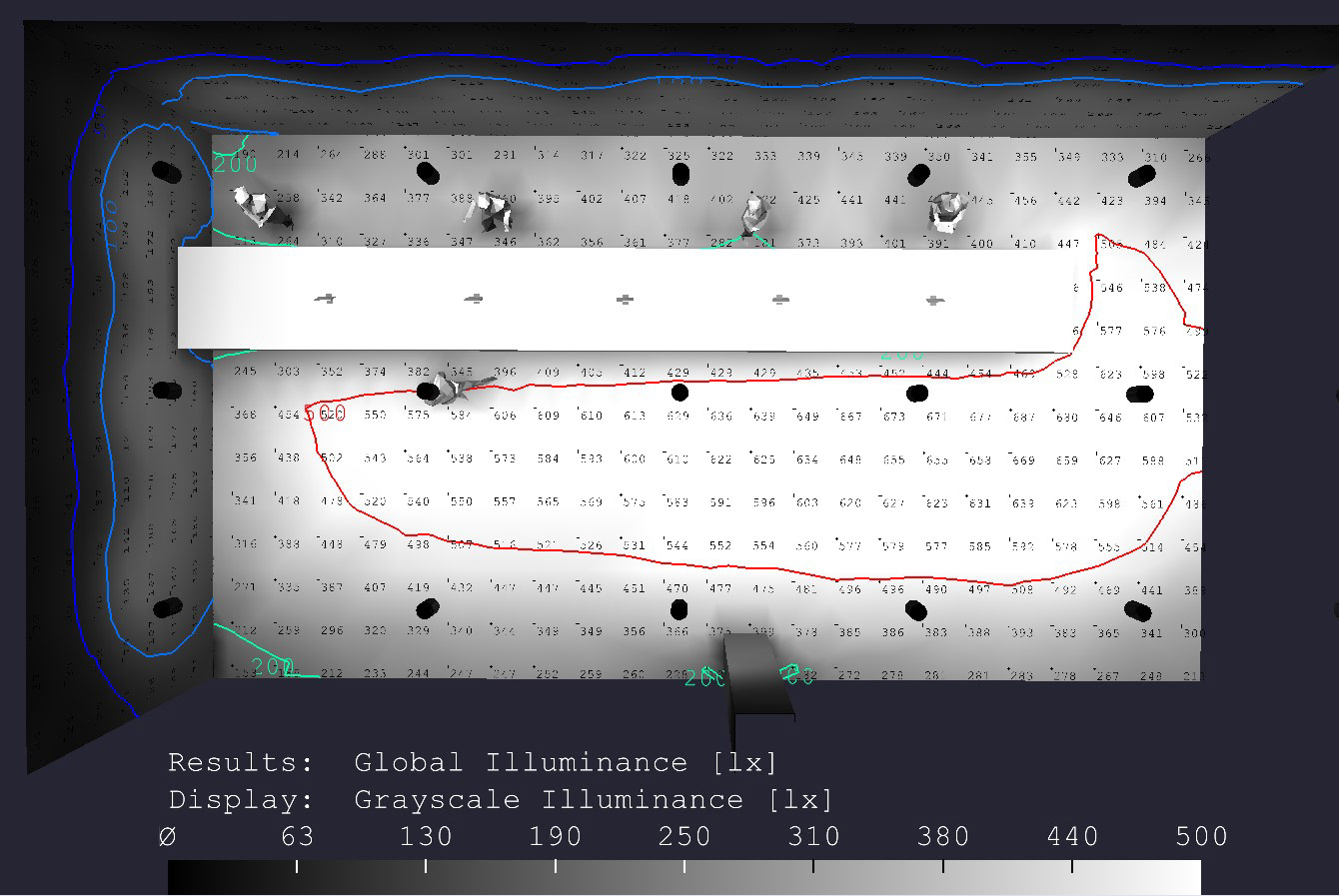

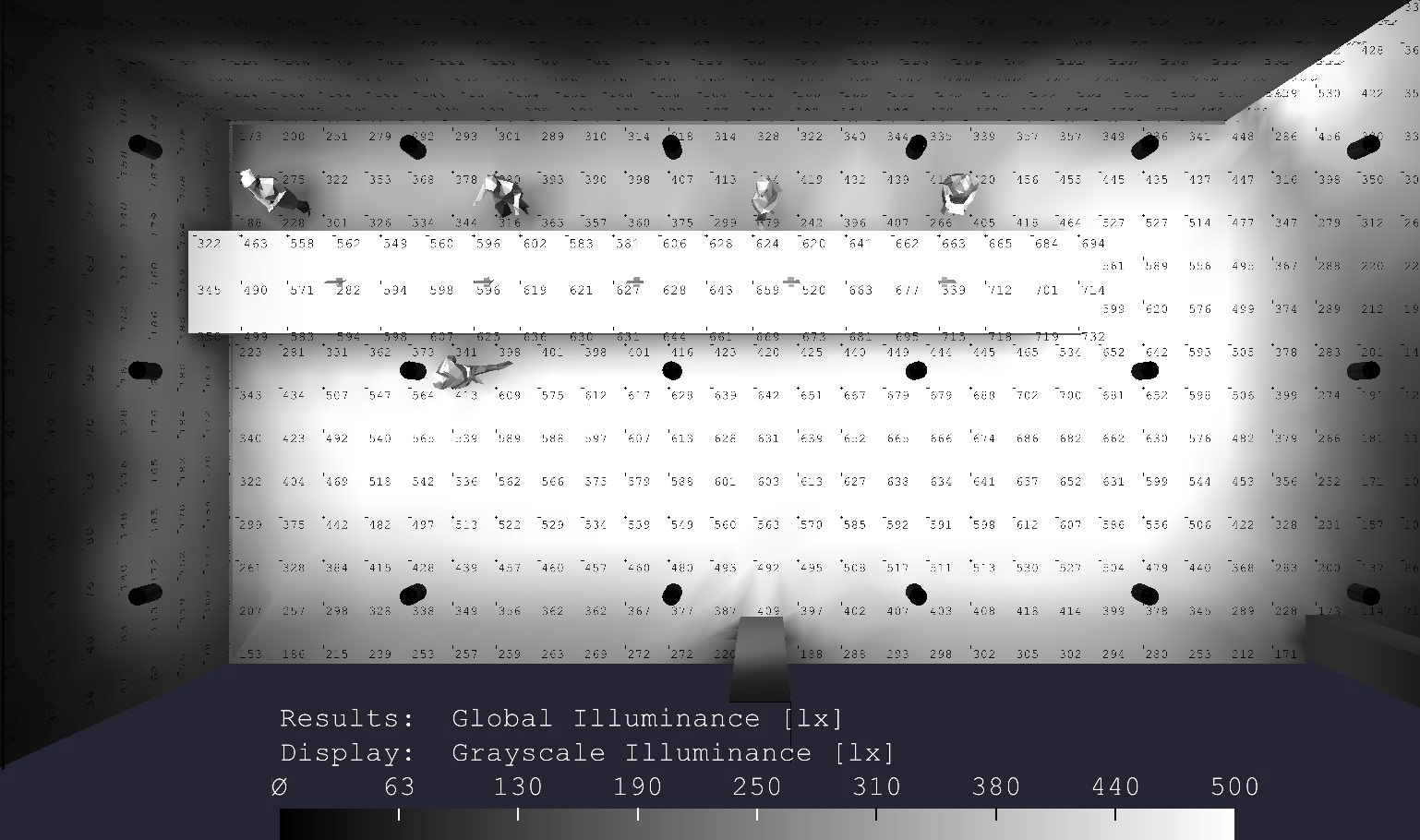

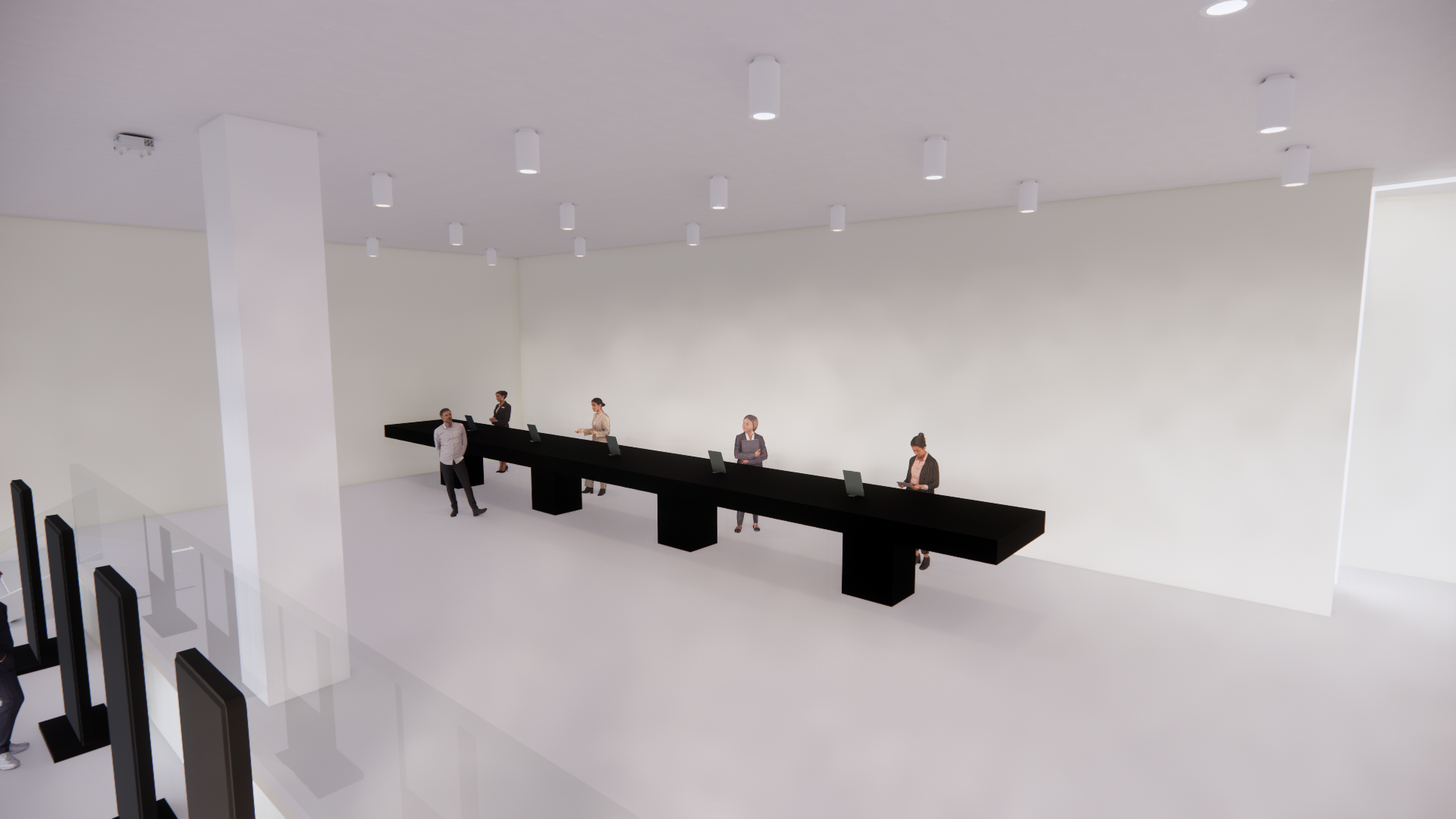

TICKETING AREA RENDERINGS:

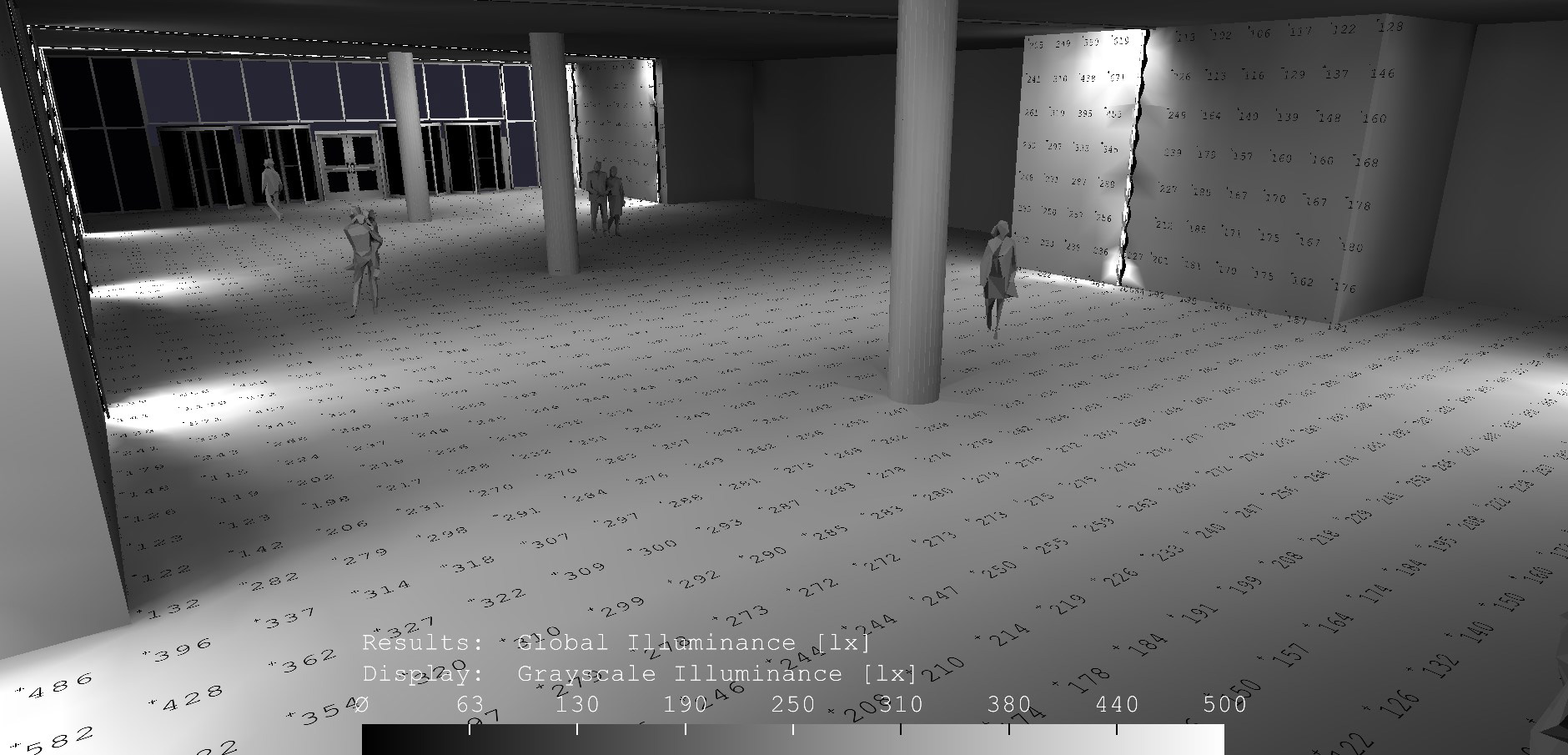

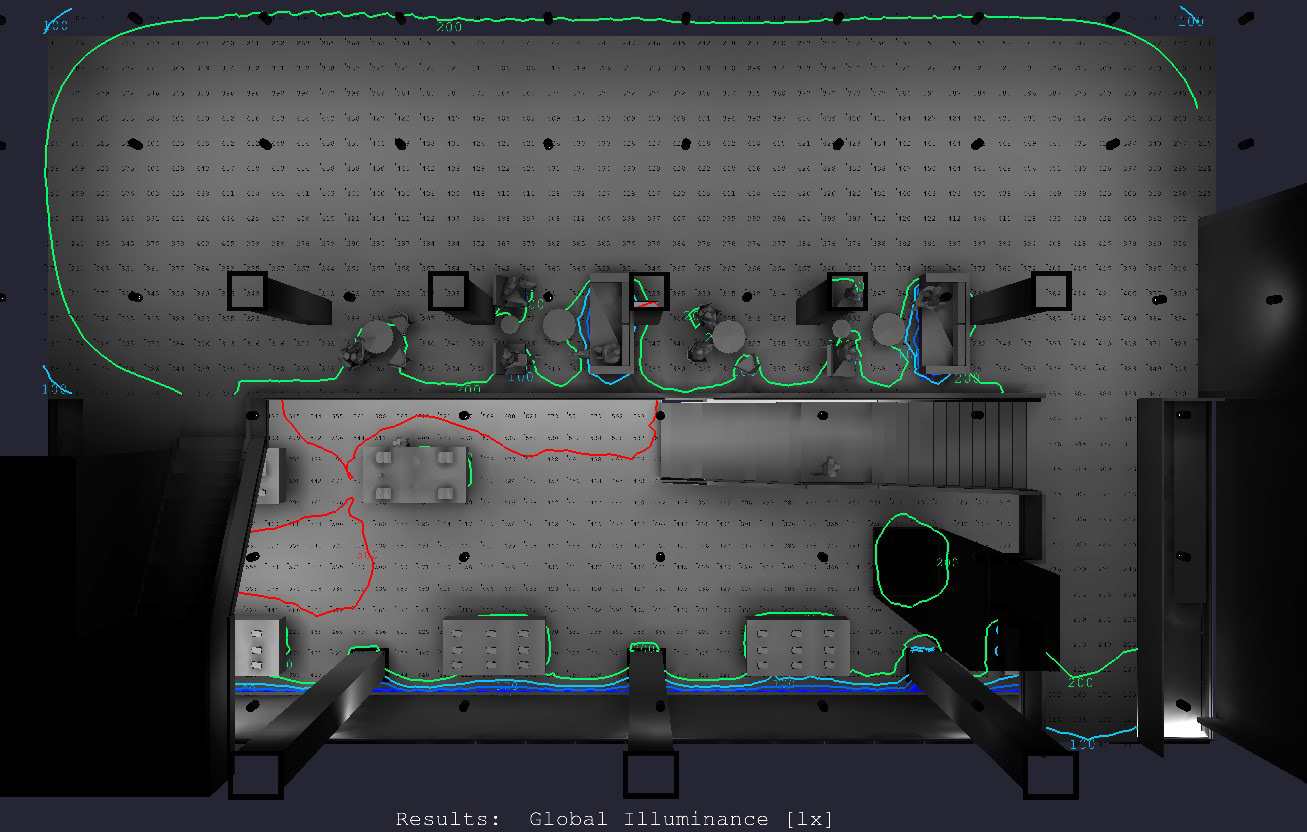

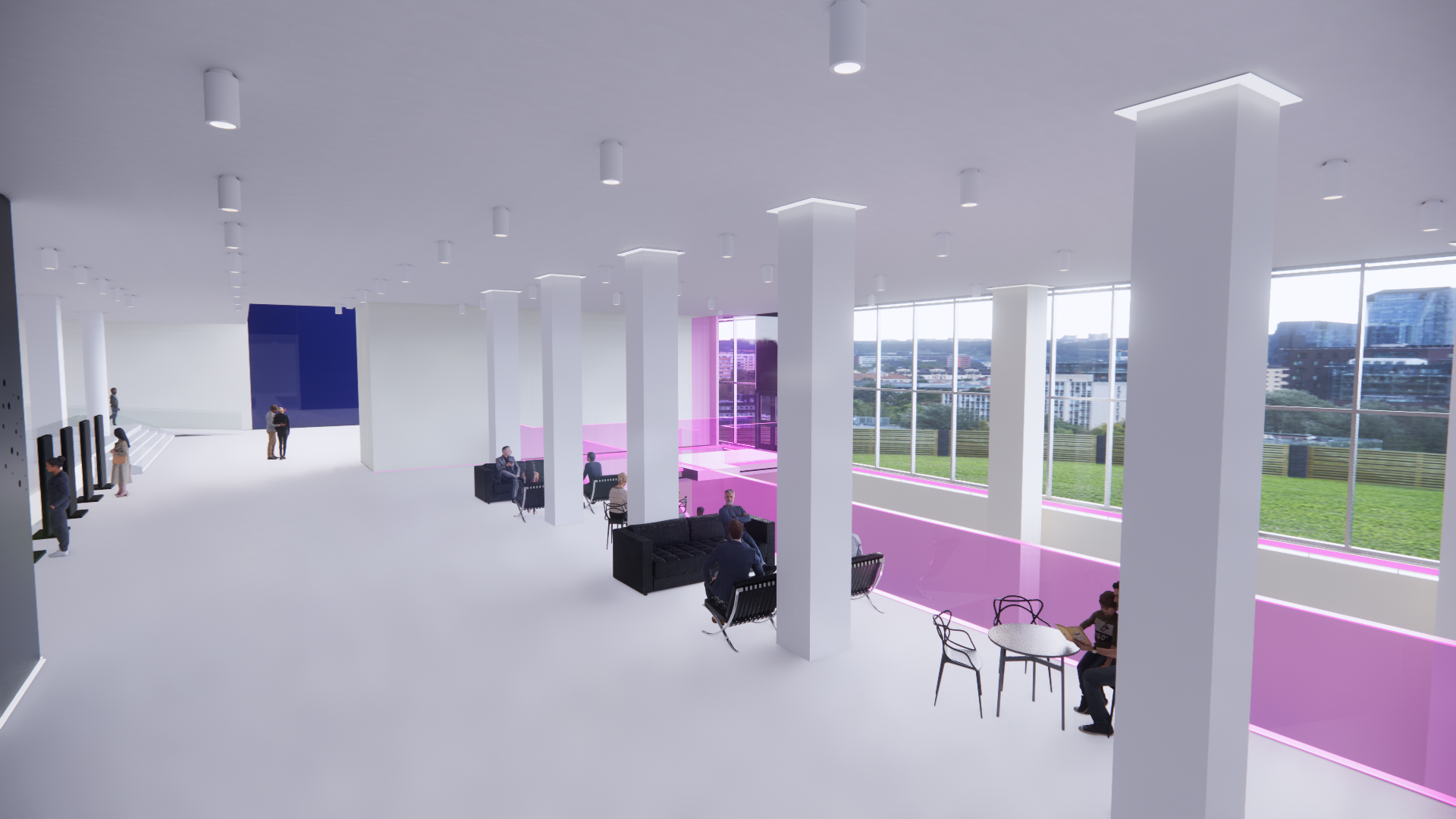

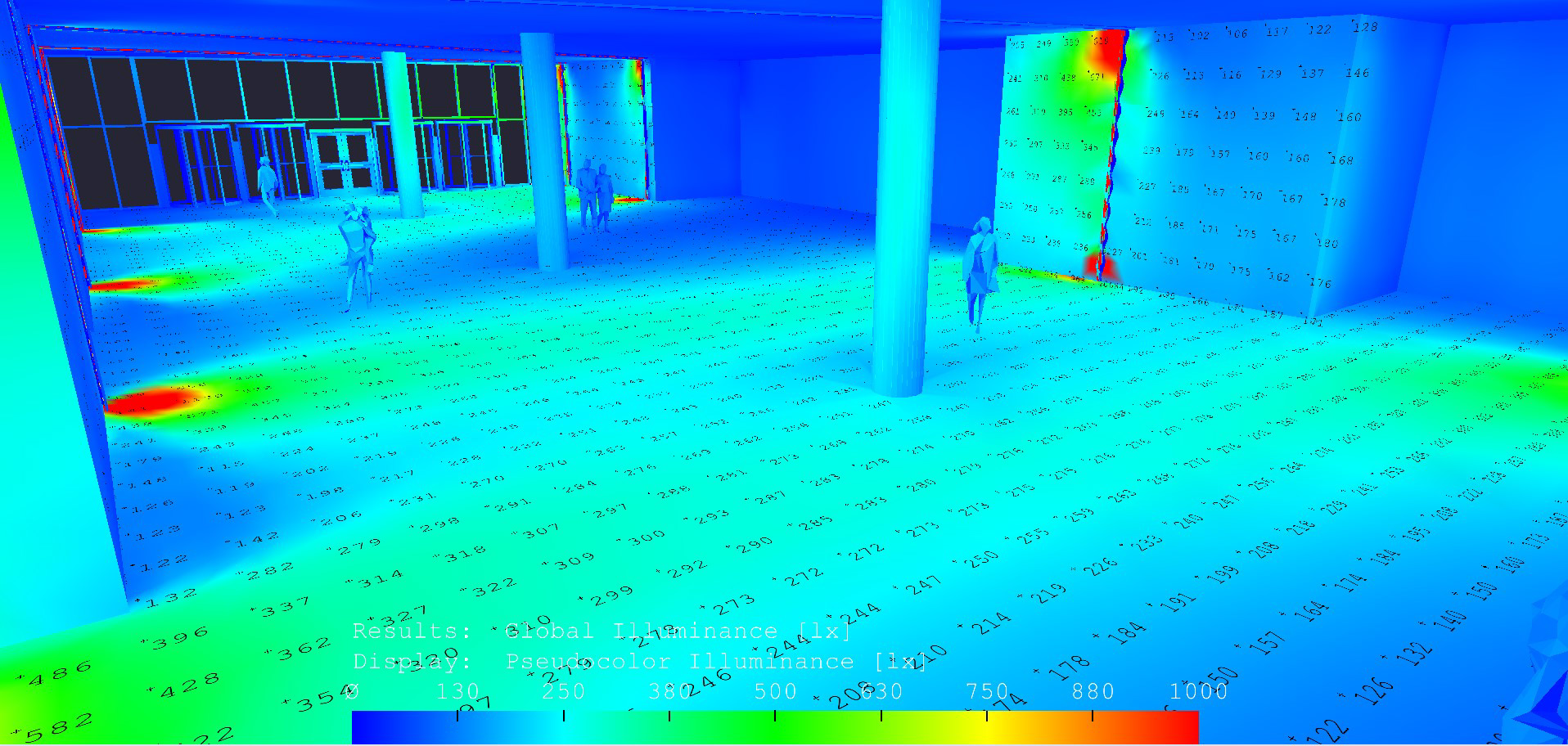

MAIN ENTRY RENDERINGS:
UPDATED GALAXY THEME- Using Eureka Lighting fixtures with IES files opposed to original self-made Revit Family lighting for Calculation purposes.

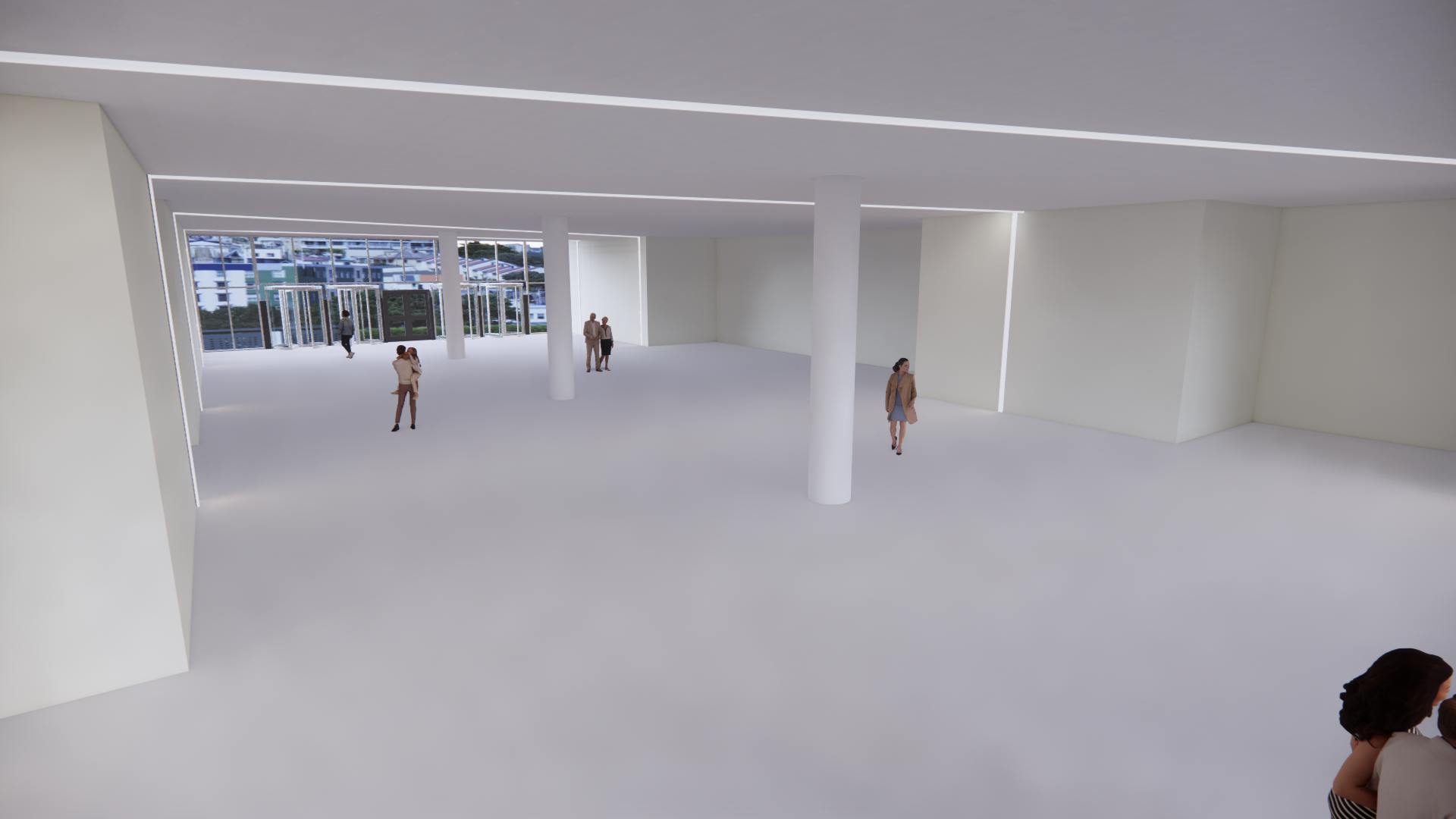

MAIN STRIP ENTRY RENDERINGS:

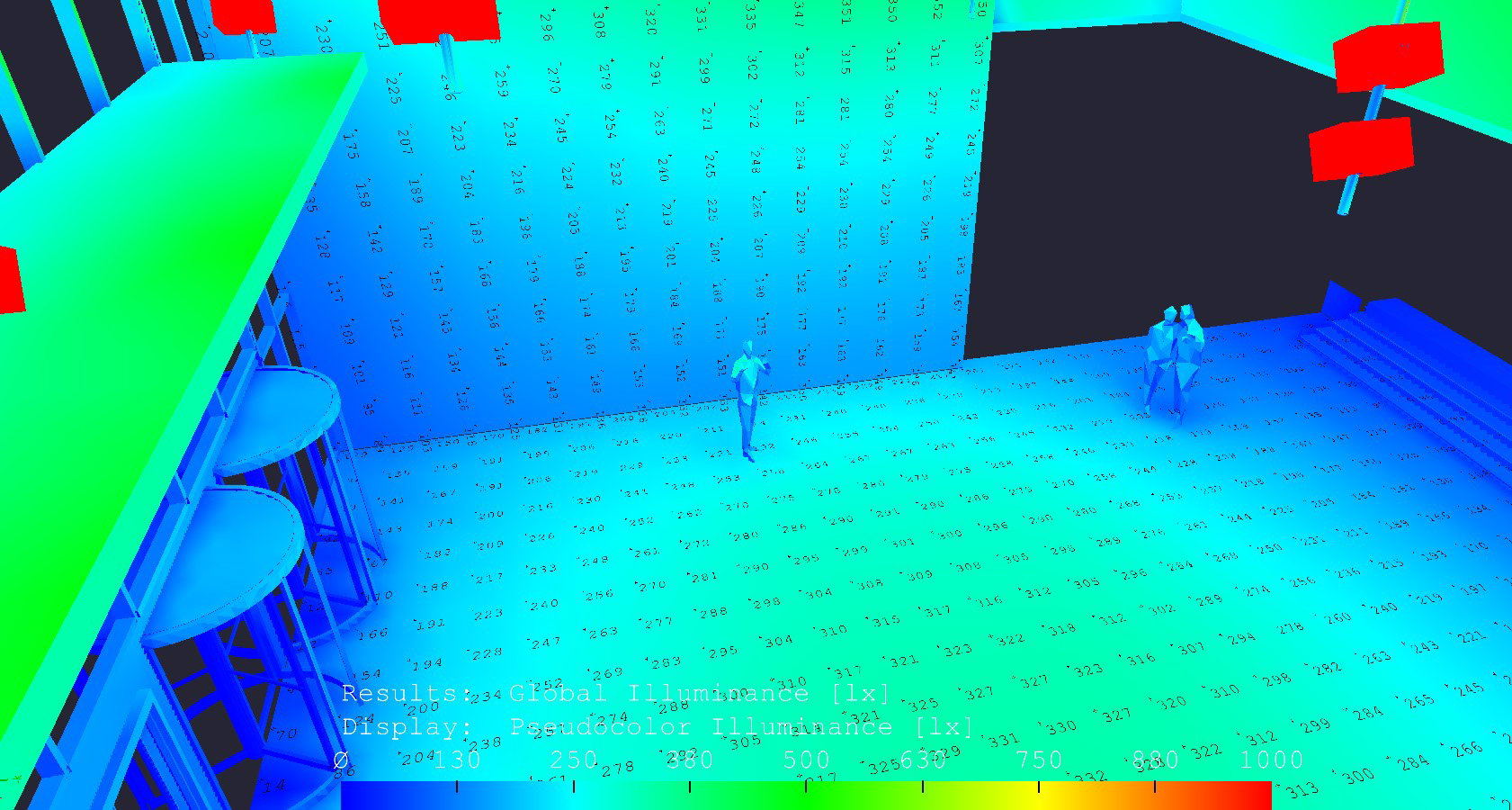

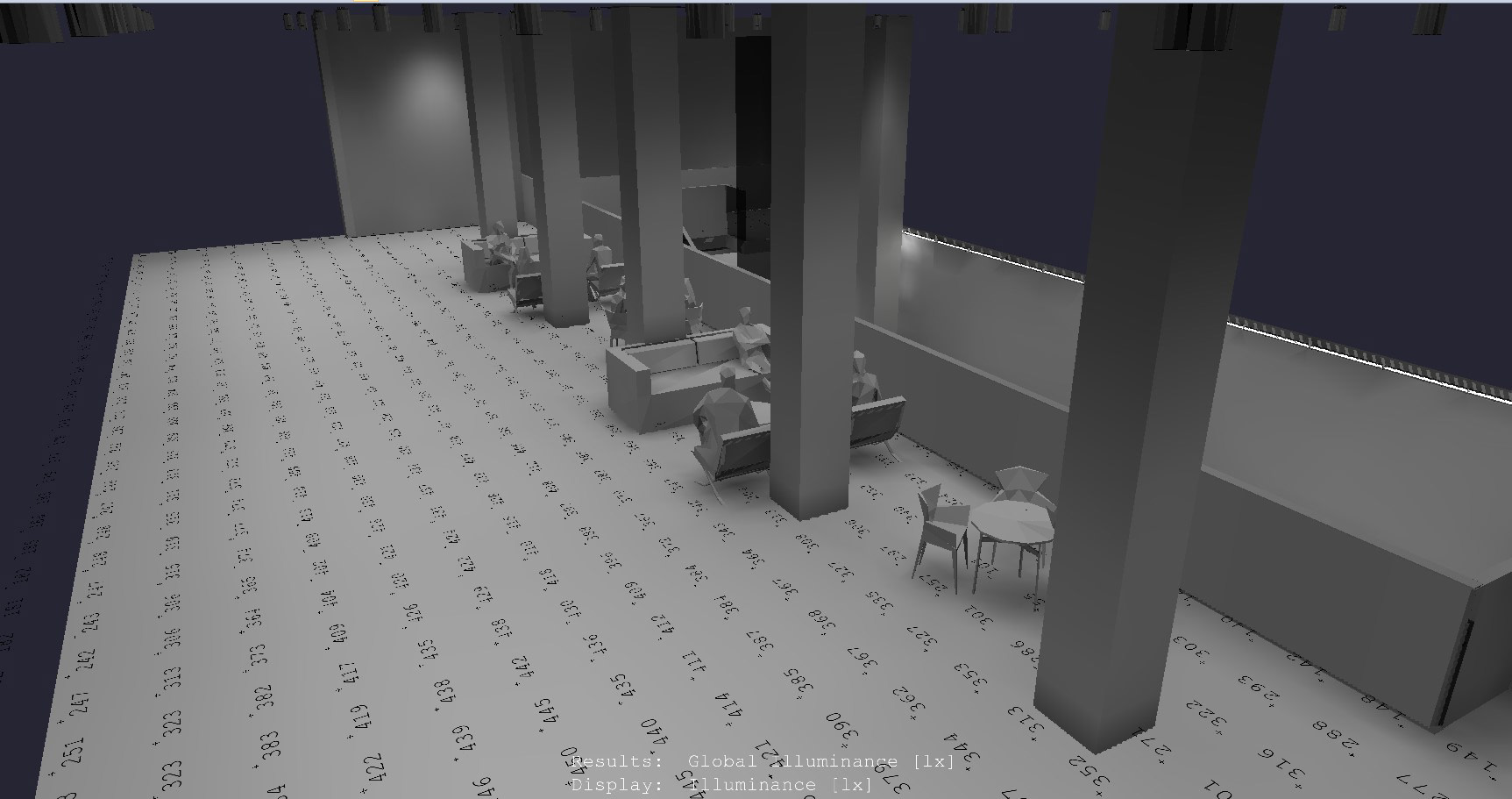

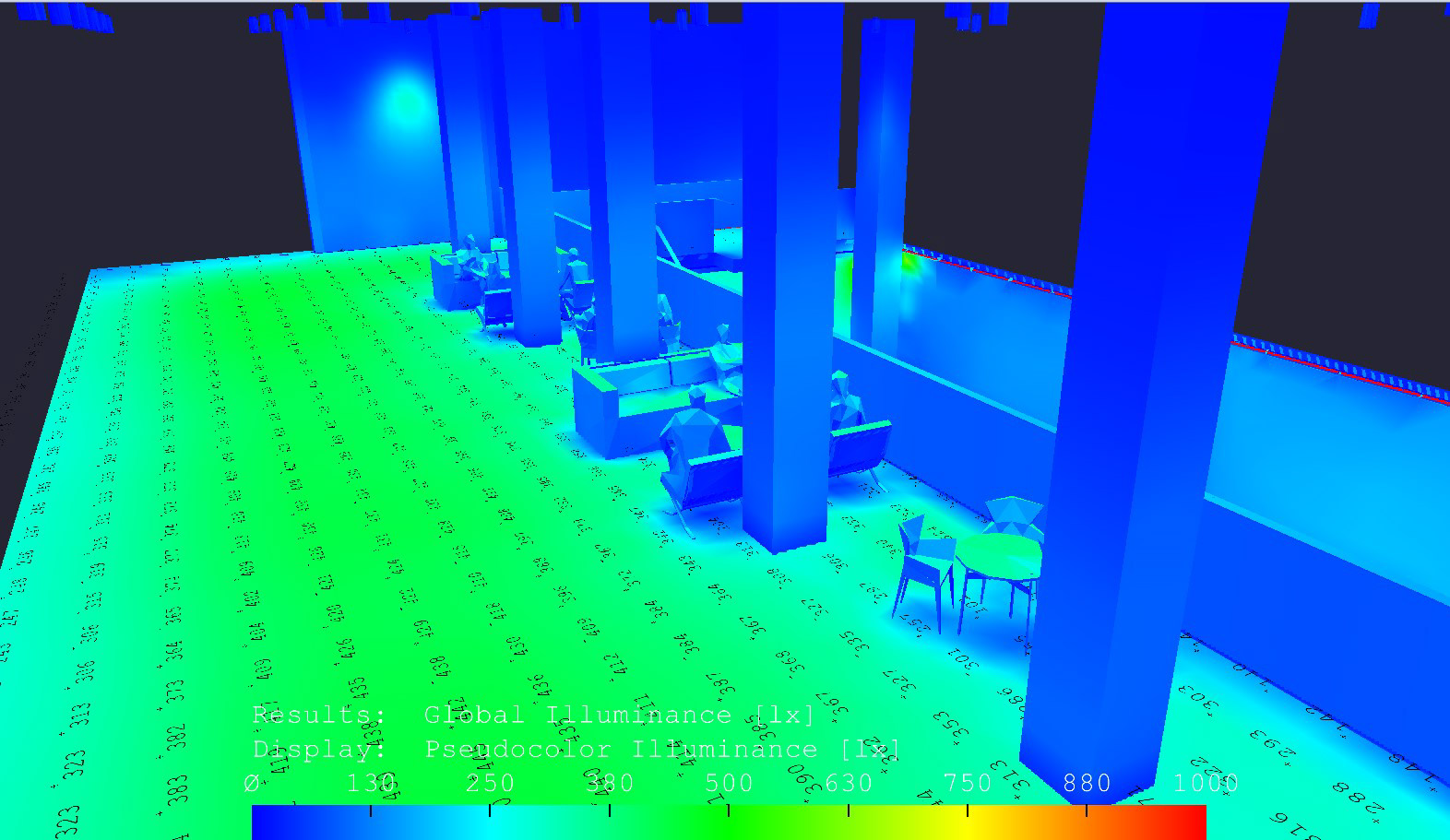

WAITING AREA RENDERINGS:

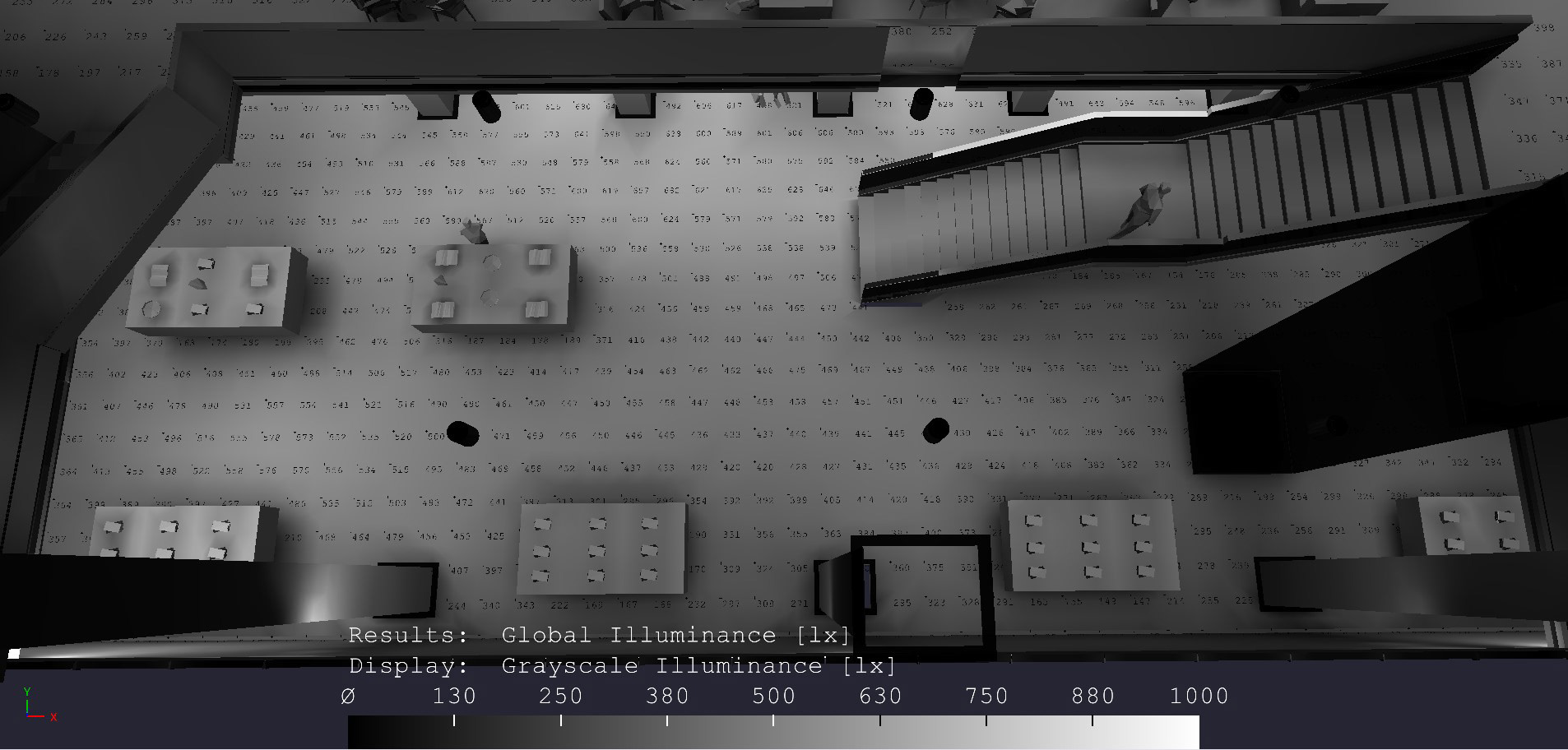

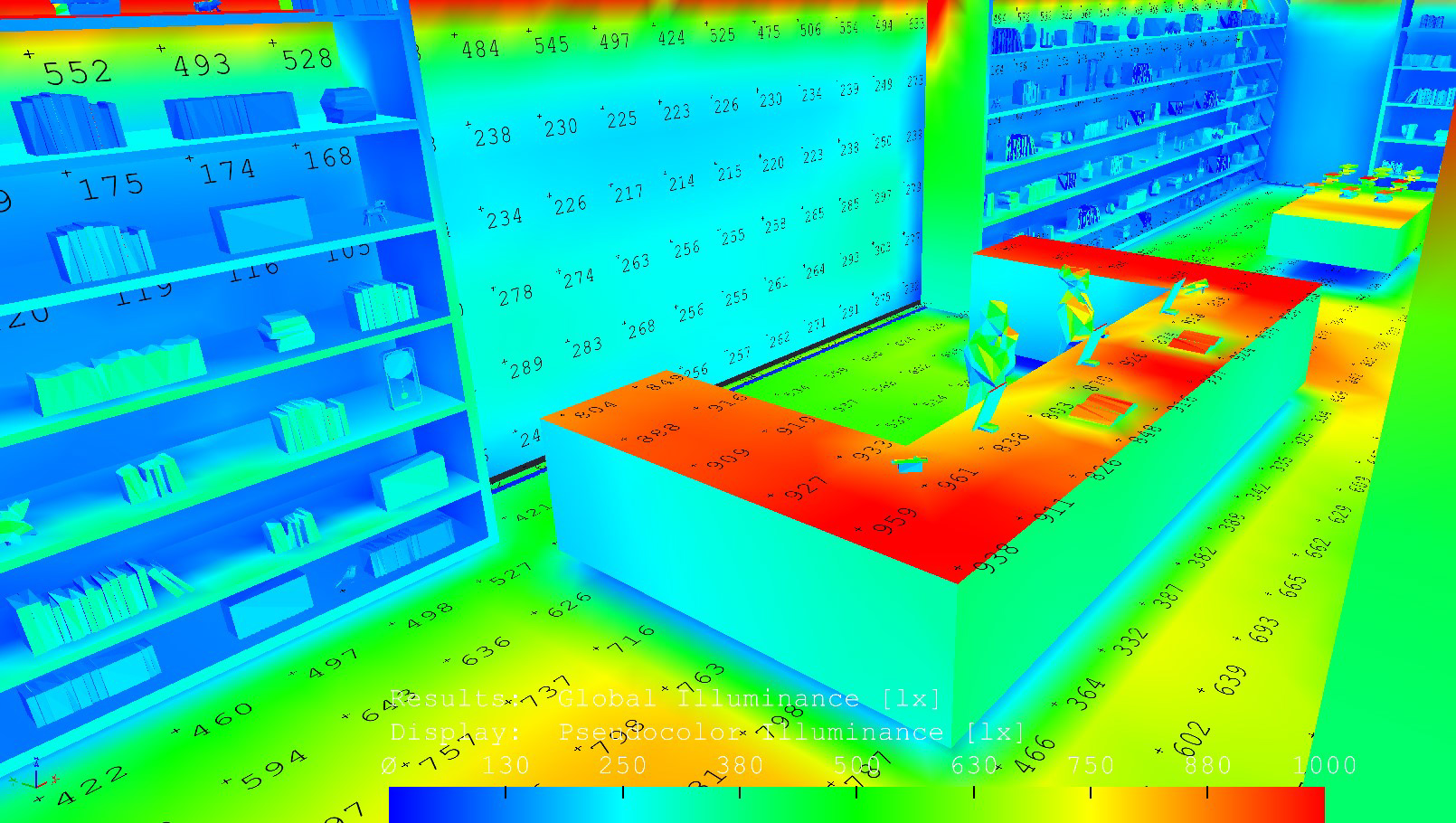

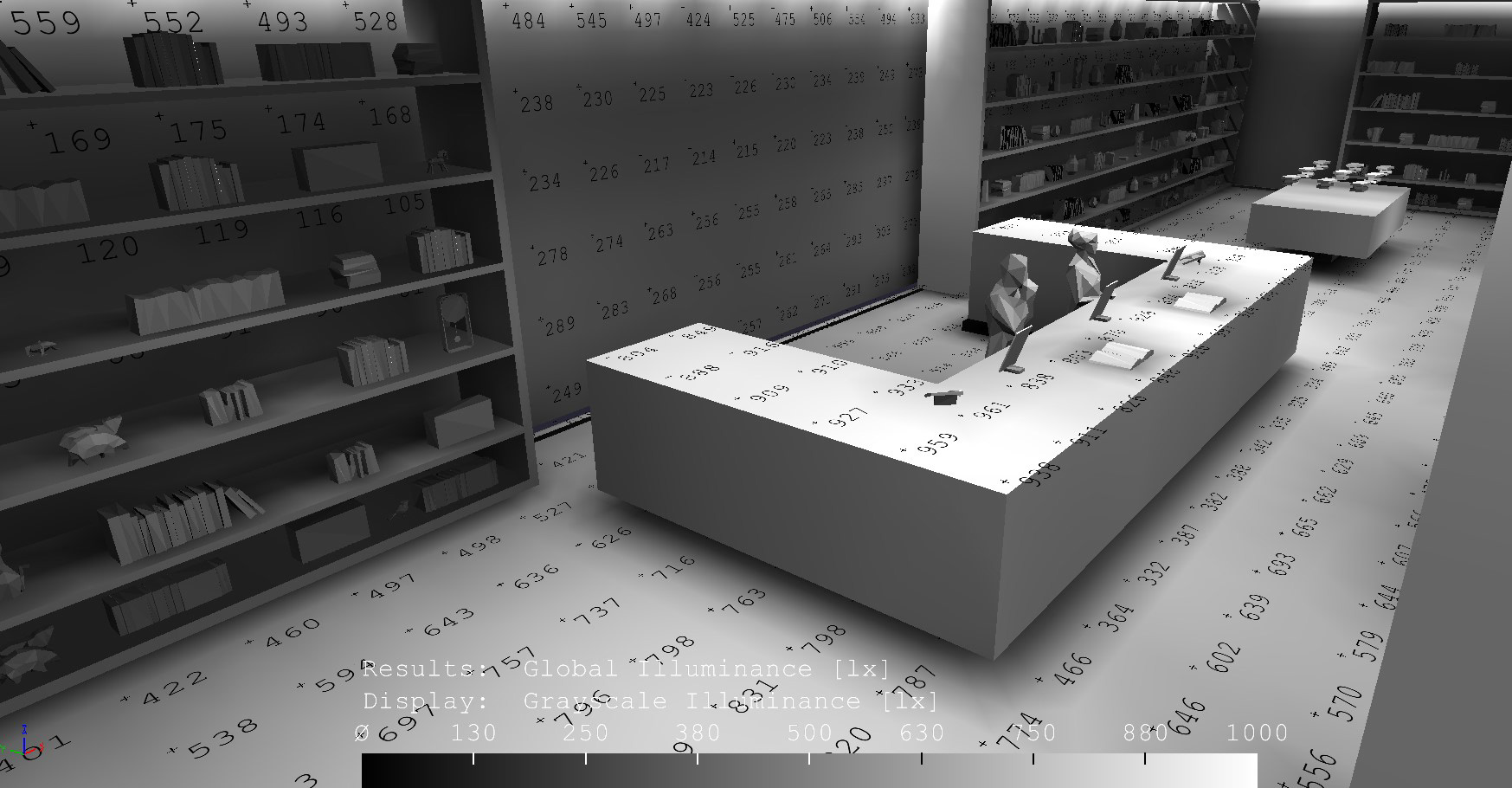

GIFT SHOP RENDERINGS:

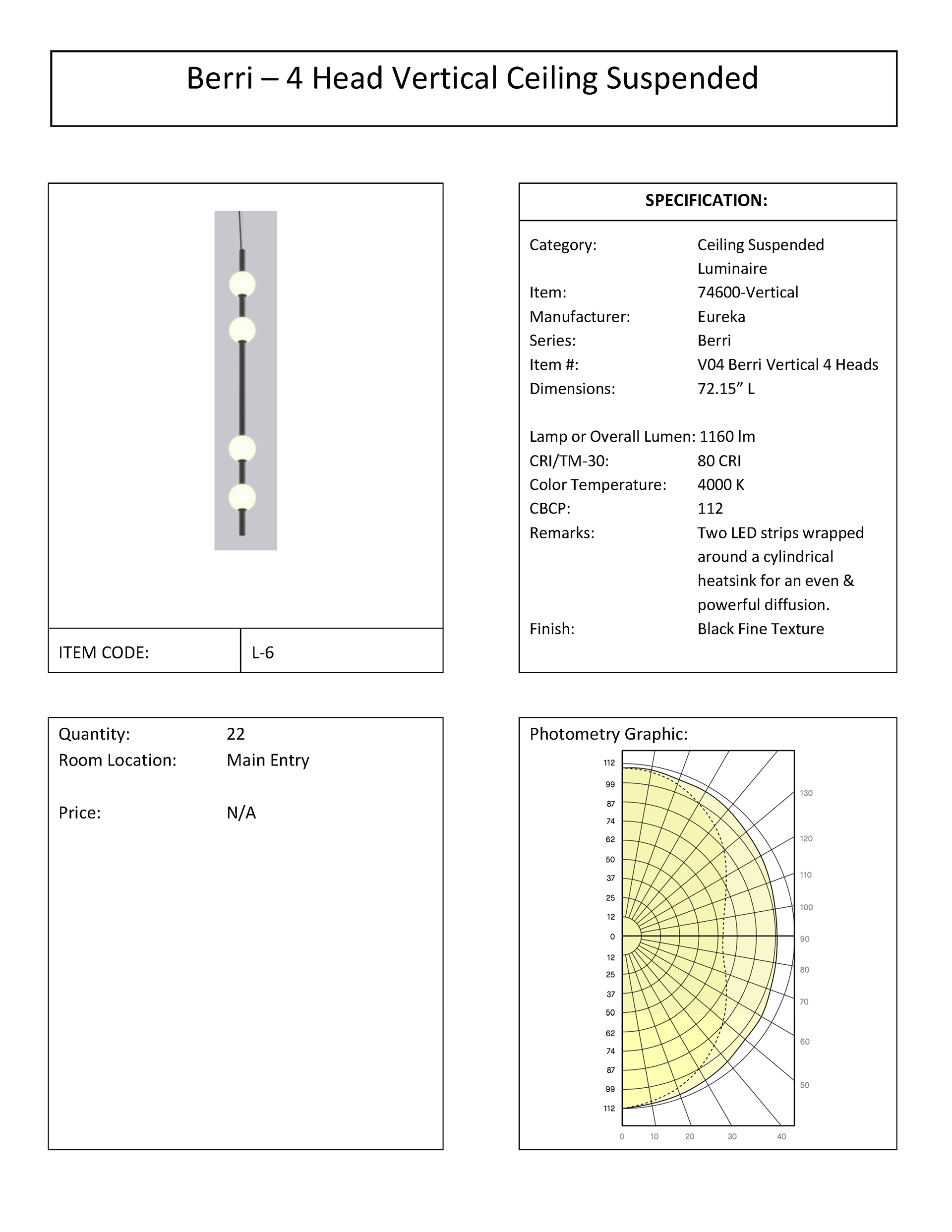

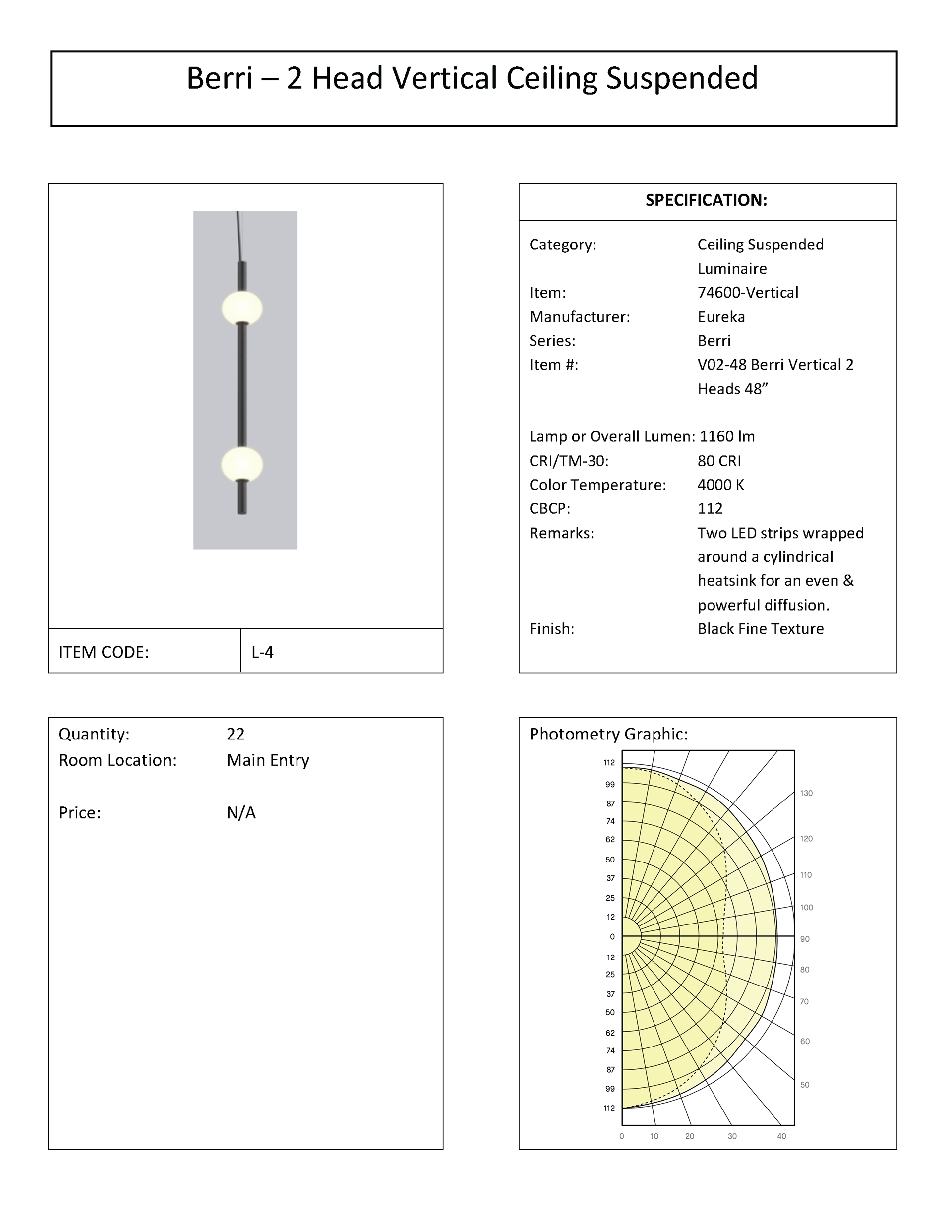

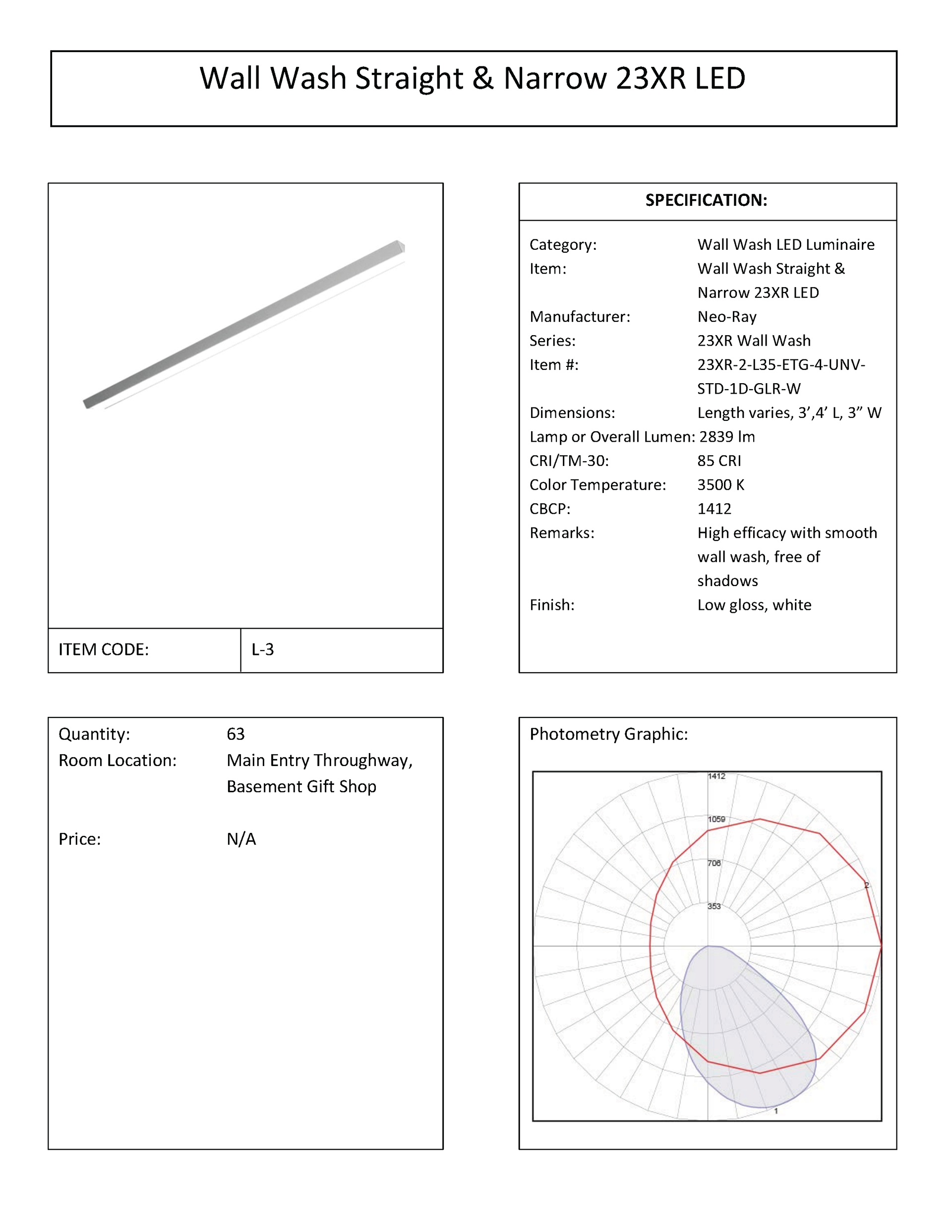

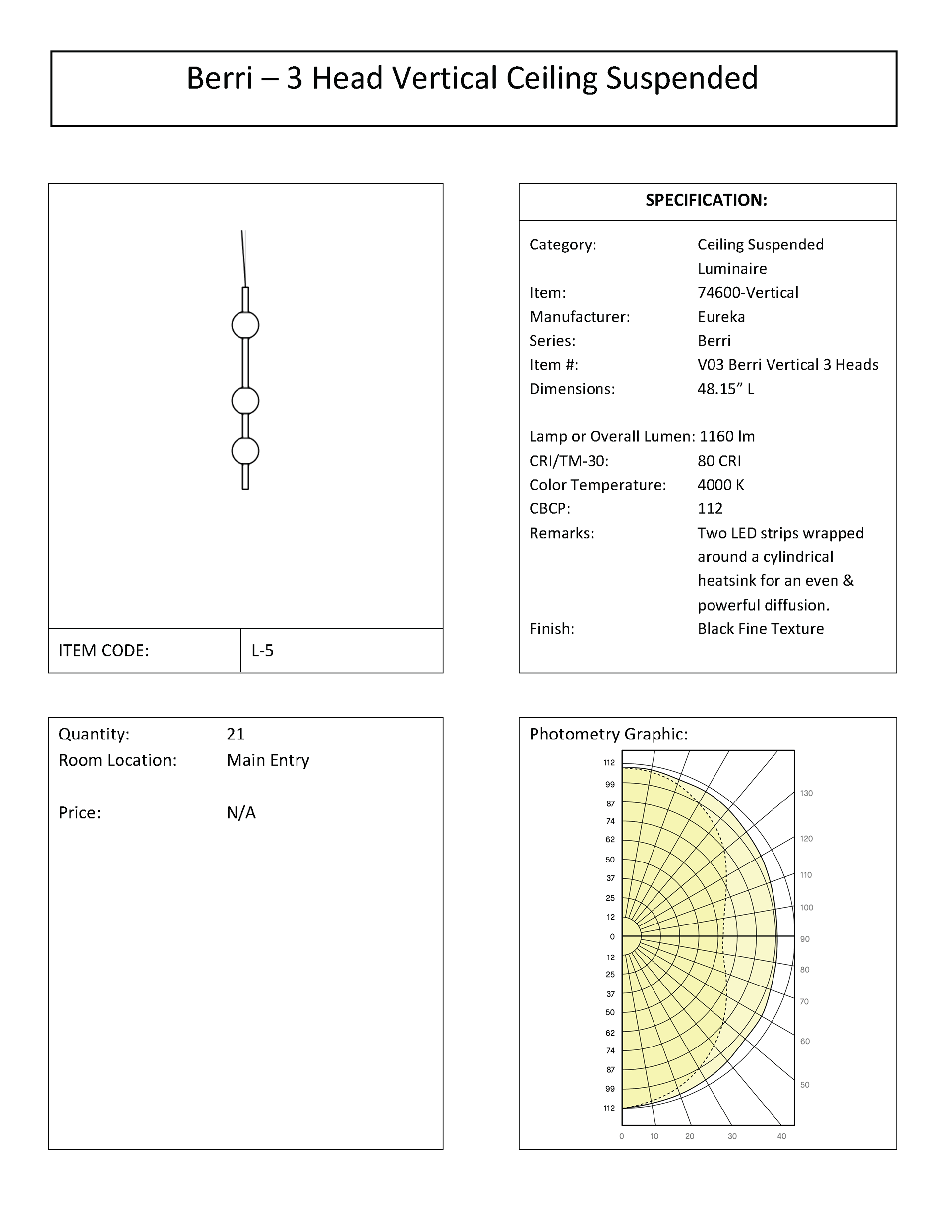

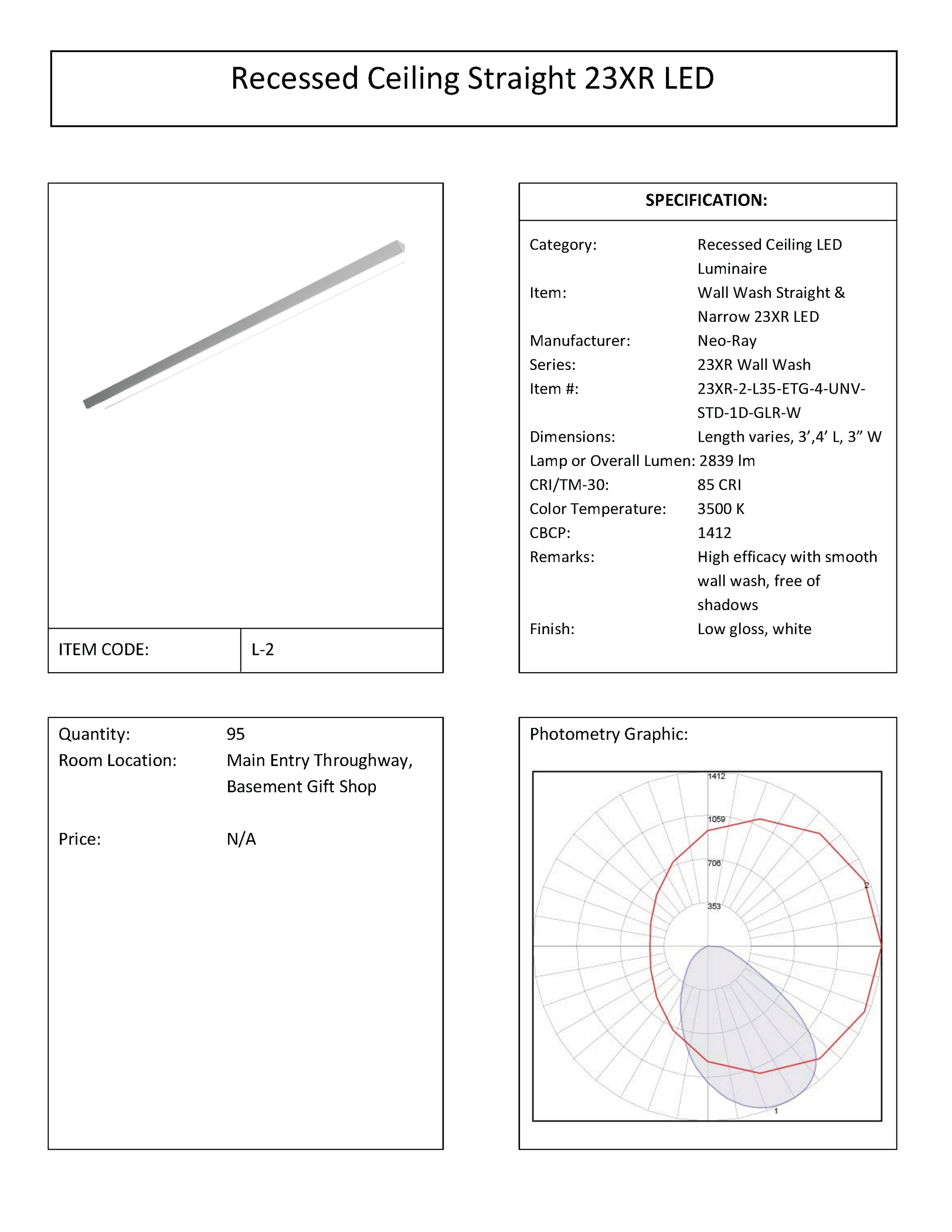

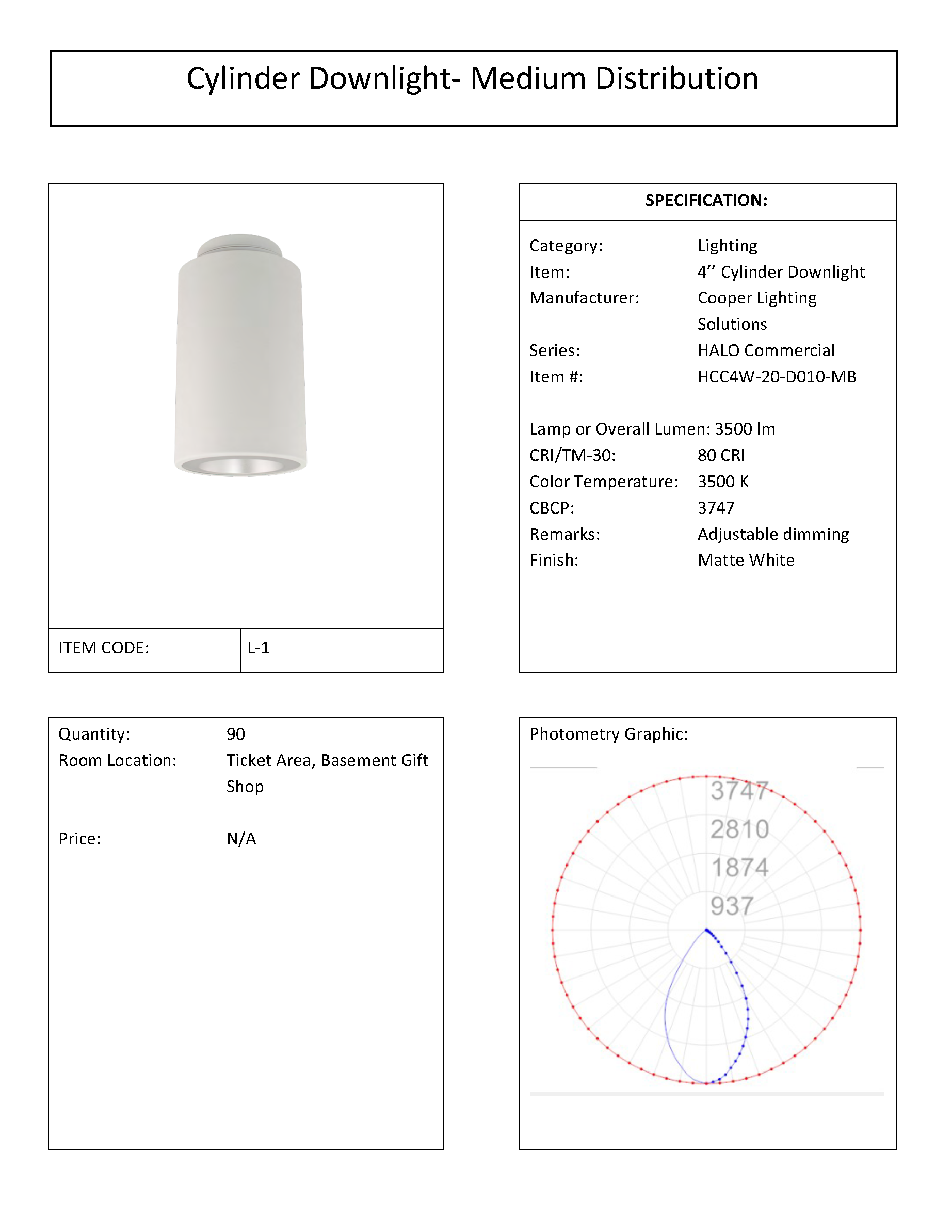

LUMINAIRE SPECIFICATION SHEETS:
